Industrial USB To RS485 422 CH340G FT232RL Converter Upgrade Protection Converter Compatibility Standard Connector Board Module

Product parameters:

1. Power: USB 5V

2. Transmission distance: 1200 m (under conditions 9600bps)

3. Chip Solution: CH340

4. Communication protocol: pure hardware device, regardless of protocol

5. Baud rate: up to 921600bps, pass each other ancillary support higher baud

6. protection:TVSTransient suppression protection, electrostatic ESD protection, surge protection, AB shorted signal lines and power supply protection short (short circuit does not burn)

7.Temperature range: -40 ° -80 °

8. External 5V supply, the current limiting fuse

9. Support system:Hot swappable, support win98 / CE / 2000/2003/2008 / XP / WIN7 / WIN8 / WIN10 / VISTA / LINUX / MAC OS X system, USB interface, hot-swappable

10. The automatic identification and control data transmission direction, without any handshaking signals (such as RTS, DTR, etc.) without jumper settings to mode conversion, to ensure compliance with existing communications software and hardware interfaces.

11. Weight: 16g

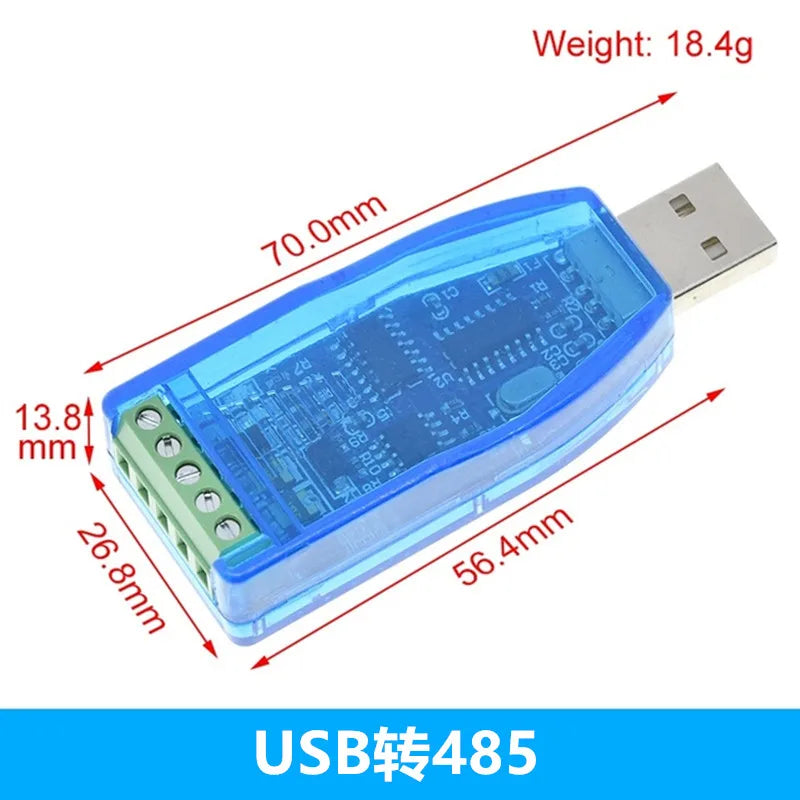

12. size: 70 * 27 * 13mm length and breadth
